QzPile is an axial pile analysis software program. Load transfer mechanism and finite element method are used to estimate pile movement, pile stress under axial loads. QzPile can be used to simulate traditional static pile load test and bidirectional pile load test. It can also be used to estimate pile responses under downdrag and adfreeze load.

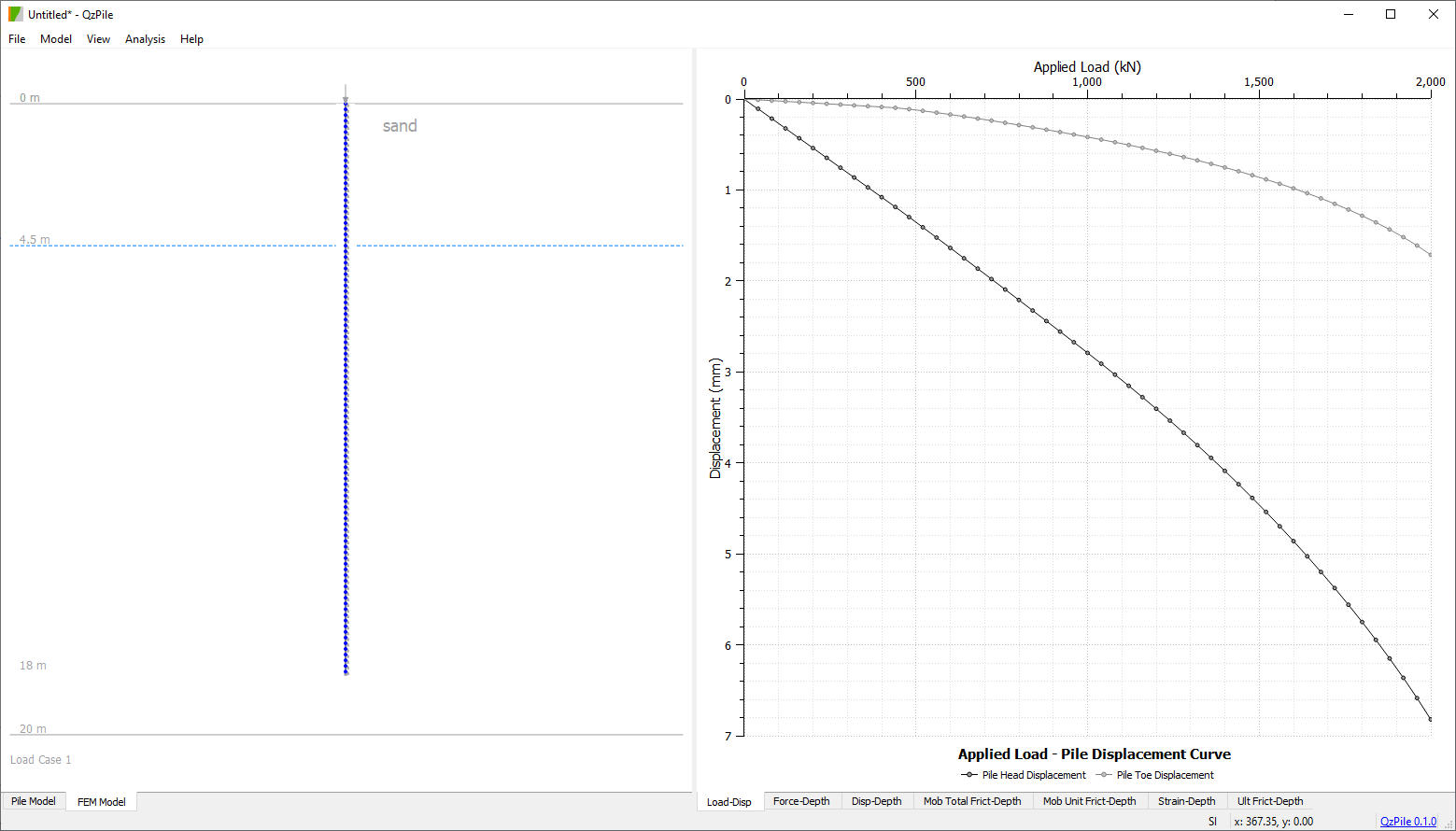

- Load – displacement curves

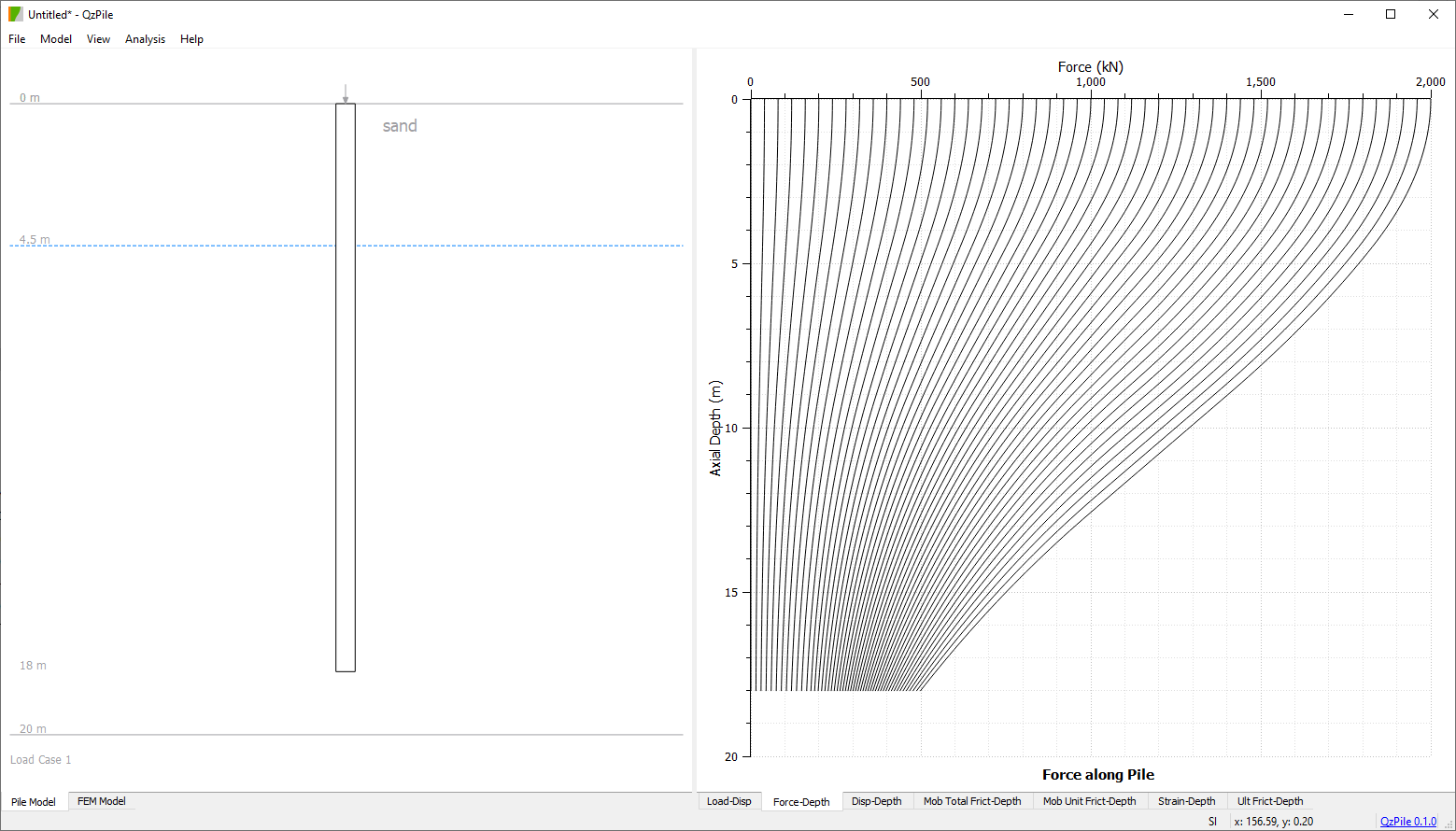

- Force along pile depth curves
- Displacement along pile depth curves
- Mobilized total shaft friction along pile depth curves
- Mobilized unit shaft friction along pile depth curves
- Pile strain along pile depth curves
- Ultimate pile shaft friction along pile depth curves
- Finite element model visualization
- SI and English units
- Pile model zoom in and out
- Result data copy
- Result graph export

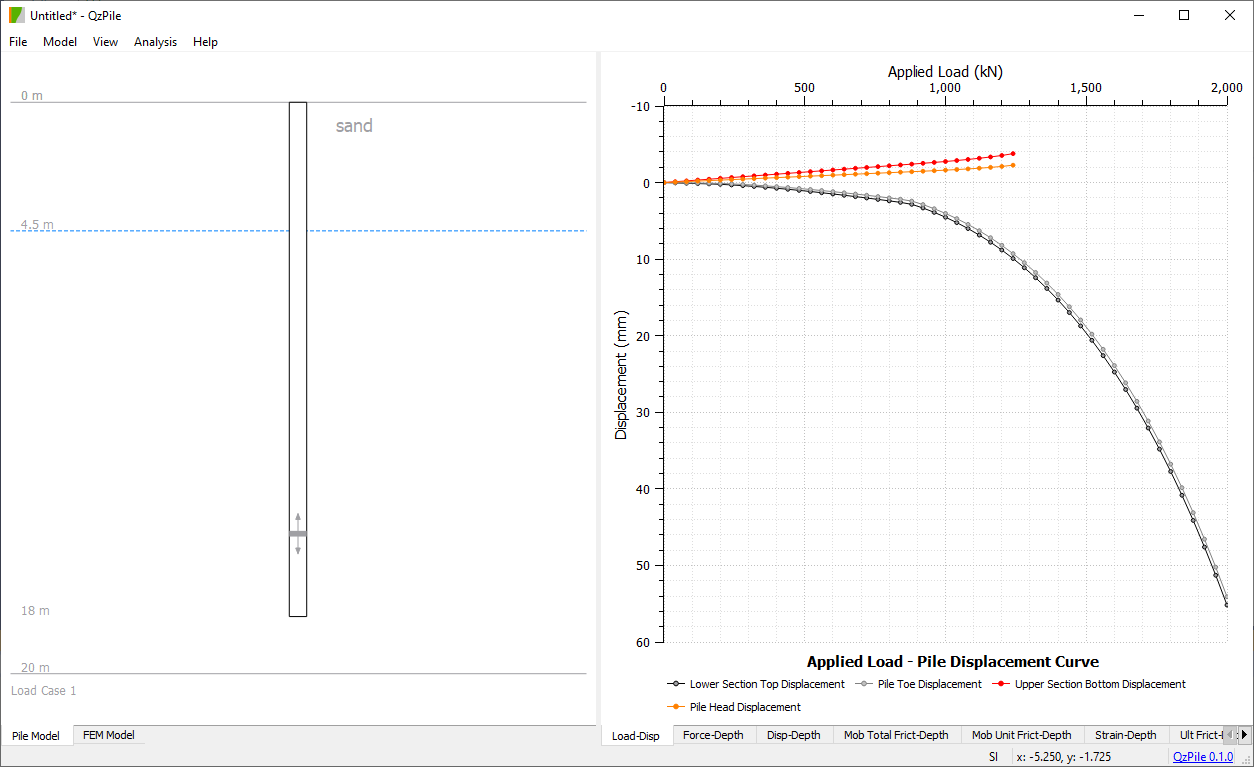

- Bidirectional load testing
- Load cell in the middle of the pile
- Load cell in the bottom of the pile

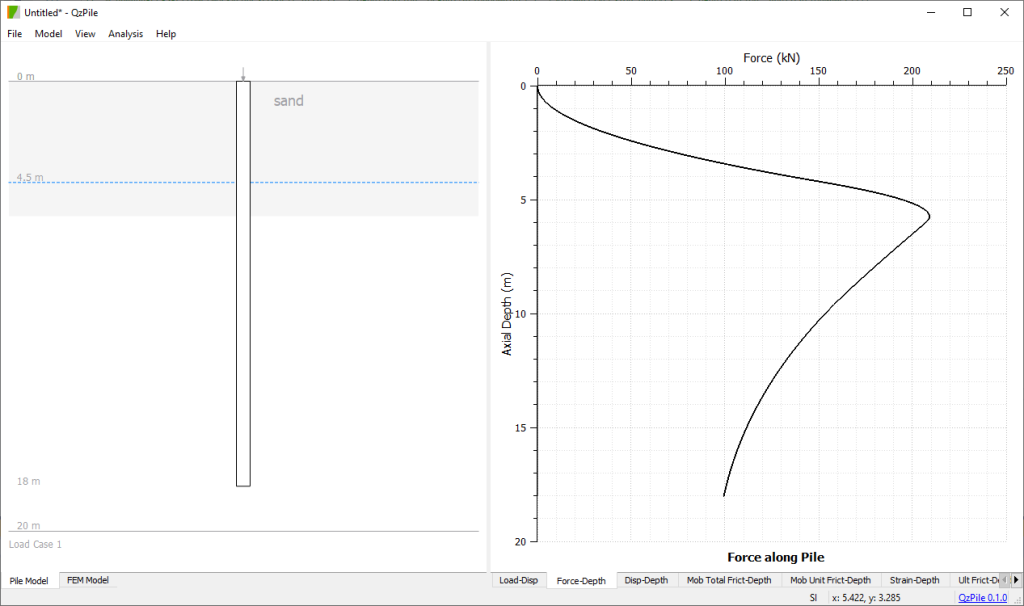

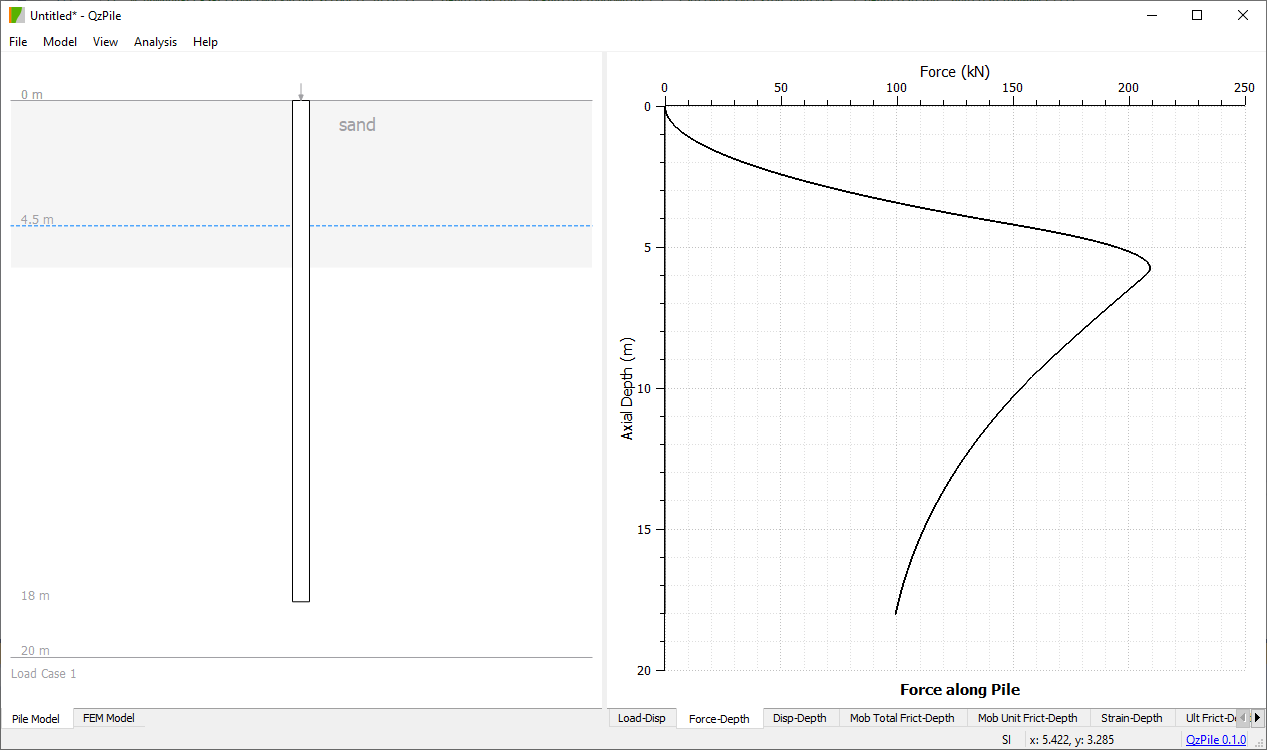

- Downdrag analysis
- Frost jacking analysis
- t-z and Q-z curves for sand, API driven steel pile, Reese and O’Neil Drilled shaft
- – t-z and Q-z curves for clay, API driven steel pile, Reese and O’Neil Drilled shaft
- t-z and Q-z curves for elastic, elastic perfectly plastic soils

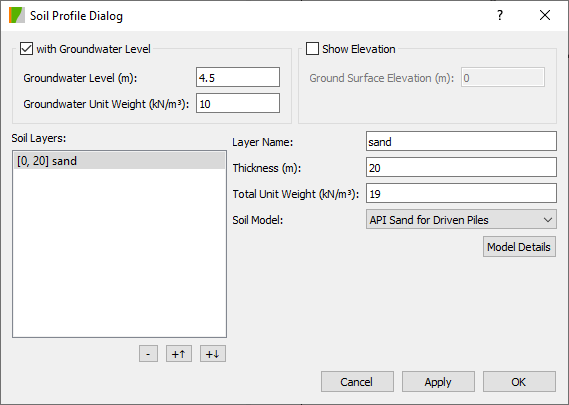

- Considering groundwater level

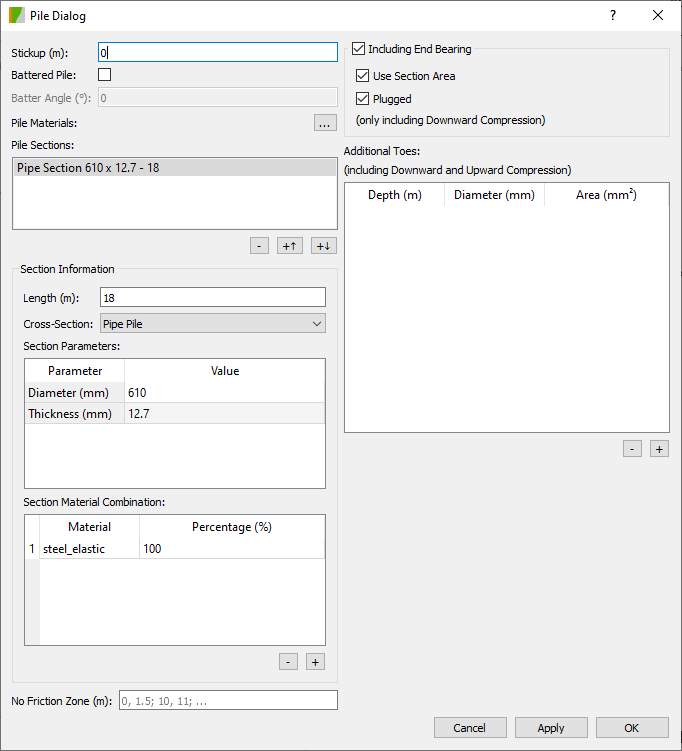

- Multiple pile sections, each with different size and materials
- Pipe, circular, rectangular cross-sections
- Elastic, elastic perfect plastic, and concrete materials
- Composite pile materials specified with percentage
- Including or excluding pile toe
- Multiple additional toes
- Multiple no friction zones
- Battered piles

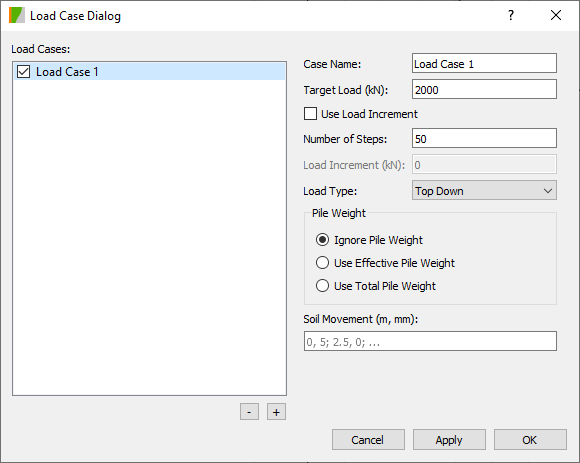

- Multiple load cases
- Pile head top down load
- Pile head uplift load
- Middle or bottom bidirectional load
- Soil movement to simulate downdrag or adfreeze load
- Including pile total weight or effective weight

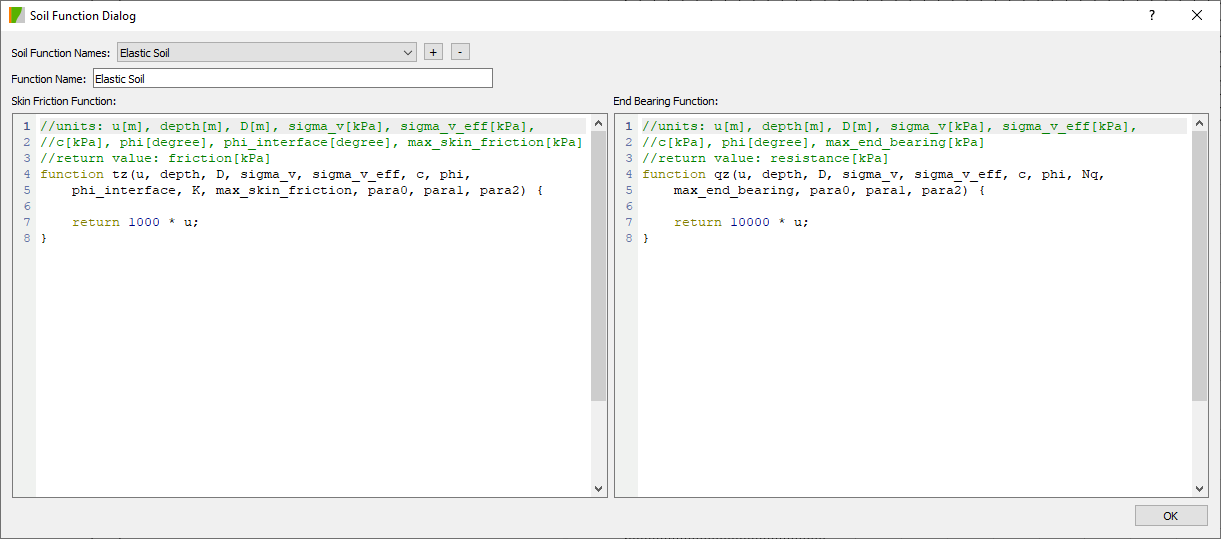

- Customizable t-z function
- Customizable q-z function
- Full flexibility to model any soil
- JavaScript
